PARTS FAMILIARIZATION WORKBOOK NO. 2 240/260
Section 1: 1975 through 1978 240/260 Models |
INTRODUCTION - Part 2
|
One "taken for granted" consideration sometimes gets overlooked in the rush. The 262, 264 and 265 are six-cylinder
cars that require engine parts for a B-27 or B-28 V-6--NOT a B-30 six-cylinder from the 160.
|
|
Electrical
The electrical system in the 1975 through 1978 cars was further refinement of
the already-proved 140 electrical engineering. This development of
Volvo electrical parts was also influenced by an ever-increasing number of
new features. These features included:
- More luxury items like power front windows, heated seats, courtesy lights,
extra instrumentation, vanity mirror lights, trunk lights and engine compartment
lights.
- High-output heating, A/C and ventilation systems.
- Safety items like an illuminated seatbelt release mechanism, heated rear window and extra driving lights.
- Additional wiring for new emissions-related systems.
The 242, 244 and 245 came equipped with a 55-amp alternator and a 60-amp hour
battery. Many of the above features were standard equipment on the 262, 264
and 265, so these Volvos were fitted with a 70-amp alternator and a 70-amp
hour battery.
As the electrical system grew, so did the cost of an alternator.
The price of a modern original equipment (OE) alternator was usually more than
the $50 that someone expected to spend. Genuine Volvo alternators were
"high ticket" parts because of the demands placed upon them.
|
|
A variety of substitute brands and aftermarket units exist on the market at bargain prices.
|
Throughout the 1975-1978 period, alternators from three manufacturers were
installed: Robert Bosch, SEV-Marchal and Motorola.
|
The starter motor on all B-20F and B-21F four-cylinder engines is located on
the left rear of the engine. The V-6 engines are the only Volvo engines to
locate the starter on the right rear of the engine.
The fusebox is located on all 240/260 models behind a plastic cover on the
driver's side interior kick panel ahead of the door. Fuses are available in
a variety of ratings (example: 5, 8, 10, 16, 25 and 30 amps). Fuses protect
electrical equipment from damage due to overloading.

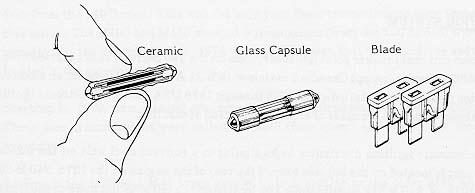

Fuses have also changed in appearance throughout the years. Three main types have been used in automobiles:
- Ceramic-body -- used in all 240/260 Volvo fuse panels up to the current year.
- Glass-capsule -- used in most domestic car fuseboxes up to about 1980.
- Blade or bayonette plastic/metal fuses -- used in nearly all cars since the early 1980s and the 1983
and later 700 Volvos.
|
|
Although all future volvos will probably have blade type fuses, the majority
of Volvos on the road today have ceramic-body fuses. Ceramic fuses are
available separately or in a kit. Fuse types should not and cannot be mixed.
|
IMPORTANT:
Three things to remember about fuses:
1. Never assume what type of fuse you require, check your owner's manual or consult a Volvo technician.
2. Never use a higher-rated fuse instead of a lower one -- for instance, never use a 25 amp for a
16 amp application.
3. Many car radios in 1978 and earlier Volvos are protected by glass-capsule fuse instead of a ceramic-body type.
|
|
Another electrical system feature built into the 240/260 is the light
integrity sensor. A warning light in the instrument cluster on the dashboard
will light up if a bulb is burned out. This system monitors low beam
headlights, taillights, and brake lights. It is sensitive to the type of
light bulb used -- the bulbs are matched to the sensor.
|
|
Fellow parts specialists advise that installing non-genuine bulbs may cause
the warning light on the dash to operate.
|
Ignition System
The conventional breaker point ignition system on the 140 was not
carried over to the 240/260 (except Canadian models with B-21 A
engines). Instead, an electronics ignition system was installed on all 1975
through 1978 USA model. Electronic ignition distributor housings are made
of aluminum instead of castiron.
The electrical ignition distributors look similar to a conventional unit on
the outside. This part is located on the left side toward the rear of the
engine on the 1975 240 B-20F. The 1976-78 240 B-21F distributor is also
located on the left side but more to the front of the engine. On B-27F V-6
engines, it can be seen on top toward the rear.
With the introduction of the B-21F and B-27F engines in 1976, ignition
distributor parts became more complex with each year. To meet federal and
California emissions standards, different internal parts, external vacuum
lines and vacuum-operated valves were installed. Also as a general rule, a
Volvo with an automatic transmission now had a different distributor than a
Volvo with a manual transmission.
As you no doubt already know, the simple "I tuned it up in the driveway at
home" has become a thing of the past! A trained professional Volvo
technician and special electronic equipment are needed to do it right.
The routine maintenance intervals for electronic ignition systems installed on
Volvos from 1975 are longer than the earlier conventional system.
Drive Train
The 1975 240 used the M40 and M41 manual transmissions that were
carried over from the 140. This was the only year these transmission
were installed on these cars. The M400 and M410 manual transmissions (from
the 160) were never installed on the 240/260. 1975 was the
first year that the overdrive switch was located in the gearshift knob.
Starting in 1976, new manual transmissions were introduced for the 240/260. These new transmissions were called the M45 four speed and M46 four
speed plus overdrive.
Although the M45 and M46 types appear to look similar to the older M40 and
M41, numerous internal changes were made to the transmissions. Although some
parts are common to both types, many are not.
Just like the manual transmissions that carry over to the 1975 240 models from
the 140, the automatic for 1975 240s is the Borg Warner Type 35.
Genuine Volvo replacement parts for rebuilding this trans as well as complete
genuine remanufactured units are still available. These transmissions have a
486 or 470 plate marking (plates described in Workbook No. 1, Section 3).
|
In 1976 the Borg Warner Type 55 replaced the Borg Warner Type 35. It was
fitted to both the 240 and 260. In addition, another version of an
automatic trans was fitted to some models: the Aisin (aay sin) Warner Type
55.
|
|
|
The AW55 was manufactured in Japan instead of Europe. The main difference
between the European BW55 and the "AW" is that the front and rear clutches in
the AW55 gear case have only one large return spring -- the BW clutches have
many. An identification plate on the left side of all BW and AW
automatics contains the transmission model number and serial number for
reference.
|
Parts names that you're familiar with include:
- Valve body assembly
- Governor
- Torque converter
- Brake and clutch discs
- Pan gasket
- Kickdown cable
|
Power gets from the engine to the manual transmission by going through the
clutch assembly. The first three parts listed below are located in the large
housing (called bell housing) between the engine and transmission:
|
- Clutch assembly (pressure plate)
- Disc
- Withdrawal (throwout) bearing
- Clutch cable (240)
- Clutch master cylinder (260)
- Slave cylinder (260)
The last three parts are located outside of the bell housing in the engine
compartment.
|
|
The 1975-78 242, 244 and 245 use a mechanical linkage (the clutch cable) to
operate the clutch. The 1975-78 262C, 264 and 265 have a hydraulic linkage
(fluid under pressure) to operate the clutch. The two types of linkages do
not share common parts.
The driveshaft is supported by a center bearing and three universal joints.
Sound familiar? It should... the same dependable system used on the 140 appears on the 240/260.
The rear wheels continue to be driven by the traditional "live" or "solid" rear
axle described first in Workbook No. 1. The dependable Volvo differential
assembly fitted to these cars continued to be available in both limited slip
and standard versions. Usually, limited slip was a dealer-installed optional
accessory.
The 240/260 Volvo final drive ratios vary by transmission type and federal or
California emissions standards. A set of gears in the differential (called a
gearset) and the transmission will ultimately determine how engine power
enables the actual movement of the vehicle. A plate attached to the
differential case indicates the gear ratio.
From time to time you may hear it said that a car is low or high geared.
Volvo gearsets came in a variety or ratios (one per model). They are
selected to provide the best performance, longevity and economy in day-to-day
driving.
NOTE: A 4.10:1 (four ten to one) is an example of what is called a low ratio,
and a 2.54:1 gearset is called a high ratio. The higher the number, the
lower the ratio. Volvo 240/260 gearsets generally range from 3.54:1
to 4.56:1. Changing the gearset changes the driveability of the car.
High-mileage cars will eventually need to have the axle shaft bearings
replaced.
Brakes
The 240/260 improved upon the power-assisted four wheel disc brake
system from the 140 and 160. These cars introduced the following
refinements during 1975 to 1978:
|
|
1975

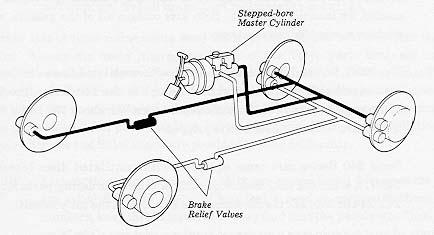

A new type of master cylinder called a stepped-bore type. As indicated in
Workbook No. 1, the two circuits in Volvo's triangular split braking system
are jointly served by the same master cylinder. If one brake circuit fails,
about 80% of full braking power is provided by the remaining circuit.
In the transition from operating on both circuits to only one circuit, there
is a change that drivers will feel during an emergency situation. This
change is the increased length of pedal travel plus the increase in pedal
pressure necessary to brake -- due to the drainage of brake fluid from the
damaged circuit.
The stepped-bore master cylinder eliminates much of the feel of these
transitional changes. It provides the same braking power and about the same
brake pedal travel even if one brake circuit is entirely empty of fluid.
Experiencing an unexpected increase in brake pedal travel in traffic can make
you grow a little older real fast!
A vacuum pump is installed to provide additional air pressure for the
power-assisted brakes. Located on the left side of the engine block, this
pump provides vacuum to the vacuum brake cylinder (also called power brake
booster). A round, flat rubber piece (called a diaphragm) inside the pump
provides the pressure. Repairs to this pump are made using a diaphragm
repair kit and, if needed, an internal valve kit.
1976
The 262C, 264 and 265 came equipped with ventilated front disc brake rotors.
Instead of having a solid metal brake disc like the 140, the 260
models took a page from the 160 (to repeat from Workbook No. 1, the
160 was the first entire Volvos to be so equipped).
Some 240 cars came equipped with ventilated discs (example: 1978
242GT).
Getting the right brake disc part number also required knowing the name of the
brake caliper manufacturer (Girling or ATE). Make sure, when you call for parts, to
confirm part numbers by looking at the service plate or the calipers on the
car.
NOTE: Genuine Volvo brake discs usually have three identifying markings
cast into the inside edge of the hub: the Volvo name, the part number and a
number in millimeters that indicates minimum machining thickness (example:
8.4 mm).
All 240/260 brake lines were now made from a metal alloy 87% copper, 10%
nickel and 3% iron/manganese. This alloy is strong and has good resistance
to corrosion. Alloy pipe was tested against galvanized steel and copper pipe
(other metals used for brake lines). After 1,300 hours in extremely humid
air with a 5% salt content, the alloy pipe came out the best with little or
no damage. The copper pipe showed corrosion damage. The steel pipe was
corroded through.
|
|
Many other less obvious refinements were made to the 240/260 brake system
through the years.
|
The parking brake system (two small shoes inside the rear brake disc hub) is a
redesign of the 140 system. The effect of corrosion and cable stretch upon
the 140 system was a tough nut for Volvo engineers to crack.
A major feature of the redesign for the 240/260 cars resulted in the
use of two brake cables (a left and a right) instead of the single cable on
the 140.
|
|
Suspension
A new type of front suspension for Volvo appeared with the 1975 240 models.
The older A-arm or wishbone type used on all Volvos since 1956 was replaced
by a spring-strut front suspension system. Many design differences exist
between the two systems and part numbers are completely different for both.
The major parts of one side of the new spring-strut type front suspension are listed below:
|
- Strut assembly
- Strut-type shock absorber
- Coil spring
- Upper strut mount assembly
- Lower control arm
- Stabilizer bar
Other parts include rubber bushings, cushions, lower ball joints and wheel bearings.
|
|
Unlike all earlier Volvos that had bolt-on/off tube-type shock
absorbers, replacing 240/260 front shocks (also called strut inserts)
requires special tools. Different strut inserts are available for a variety
of driving conditions.
The 240/260 were the first North American Volvos to be fitted with
14-inch diameter road wheels. Wheel rim size increased to 5.5 inches from
the 4.5 and 5.0 inches on the 140 and 160.
Also, in addition to these stamped steel wheels, 14-inch aluminum alloy wheels
became standard equipment on certain 1978 models. A variety of wheels and
wheel trim was available for the 1975-78 240/260.
The rear suspension is a redesign of the tried and true coil spring live rear
axle used on all earlier cars. Improvements include revised locating
attachment points on the axle housing for the two torque rods (also called
support stays) and many new parts like:
- Trailing arms (support arms)
- Panhard/track rod and support member
- Stabilizer bar (the 140 and 160 never had one)
- Various brackets, bushings, rubber cushions
Two rear coil springs are used on all models. A variety of coil spring part
numbers are available, depending upon the vehicle application. As a general
rule, the station wagon models (245/265) have stronger rear springs and
shocks to help support increased carrying loads. Coil springs, like shock
absorbers and certain brake system parts, should be replaced in pairs.
|
Steering
Every 240/260 model has a rack and pinion steering system. Two versions
are used: manual and power-assisted. Which 1975-78 models have manual or
power? Take a look at the list below:
|
|
Year | Model |
Transmission | Steering Type |
1975 |
242, 244 |
Manual
Auto |
Manual
Power |
|
242GL, 244GL |
Manual
Auto |
Power
Power |
|
245 |
Manual
Auto |
Power
Power |
1976 |
242,244 |
Manual
Auto |
Manual
Power |
|
245 |
Manual
Auto |
Power
Power |
|
262, 264 |
Manual |
Power |
|
262 GL, 264 GL, 265 |
Auto |
Power |
1977 |
242,244 |
Manual
Auto |
Manual
Power |
|
245 |
Manual(M45) |
Manual |
|
245 |
Manual(M46)
Auto |
Power
Power |
|
262 GL, 264 GL, 265 |
Manual |
Power |
|
265 GL |
Auto |
Power |
1978 |
242,244 |
Manual(M45)
Manual(M46)
Auto |
Manual
Power
Power |
|
242 GT |
Manual |
Power |
|
245 DL |
Manual
Auto |
Power
Power |
|
262C, 264 GL, 265 GL |
Manual
Auto |
Power
Power |
|
As a general rule, 1975-78 240 models with manual overdrive transmissions
(M46), automatics and all 260 models are equipped with power steering. A few
rare exceptions may exist.
Manual rack and pinion steering does not have a power steering pump, pressure
lines, rubber seals and the hydraulic parts that a power rack does.
Special tools, test equipment and work/shop space are needed to properly repair
a leaking power-assisted steering rack.
|
|
Local auto dismantlers may have rebuildable units available. It
might pay to spend some time picking up a core.
|
Two manufacturers supply racks for the 240/260. They are ZF (short for
Zahnradfabrik of Friedrischafen, a German company) and Cam Gear (an English
company). Determining the manufacturer of the rack to select the correct
repair parts.
ZF racks can be identified by the two letters "ZF" stamped onto the rack housing or pinion drive.
The majority of power racks fitted to these cars are Cam Gear units. To
identify these units, look for a production code number (1205660, for
example) either cast or stamped on the rack housing. Only Cam Gear racks
have this seven-digit number. If a number is found and no ZF marking is
indicated, the unit is a Cam Gear.
Other parts in the steering system include:
- Power steering belt
- Left and right tie rods
- Pressure lines
-
Rubber bellows (accordion-type rubber boots on the rack)
Body - 240 Models
"Going up market" was a popular industry-wide term applied to Volvo 240 models
in the mid to late 1970s. This term generally means that new Volvos were
designed to attract the luxury car buyer. This "upscale market" luxury car
buyer purchased cars that not only offered quality and dependability but also
a variety of special luxury and technical features. The 240 models were
designed with this in mind.
In addition to breaking new ground in the upscale market, prices for all new
cars were increasing dramatically. Generally, a $3,000 car in the late 1960s
cost more than $6,000 in the mid-1970s. In as little as five or six years, the cost of the
average car had doubled (a 144S cost about $3,200 in 1968, as compared with more than $6,000 for a 244 in 1975!).
Although separate events might be blamed for higher car prices (inflation,
skyrocketing oil prices, increased emissions requirements, etc.), it was
actually a variety of reasons that kept prices climbing. Volvo not only had
to contend with horrendous market conditions but also try to attract a new
type of buyer -- a tough road made even tougher.
The 240 models had a big job to do. The body design was a combination of the
240 and the VESC previously mentioned. The 240 front end resembles
the 1972 safety car both in its appearance and function. Improvements to the
design of many 140 body parts prepared the 240 models for the jump
into the upscale car market.

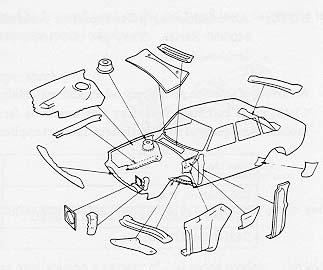

For many years, Volvo has used hot-dipped galvanized (zinc coated 0.02 mm) steel
for certain sheet metal parts. These parts are normally subjected to high weather
exposure and are critical to the strength of the body.
|
The 240/260 expanded the use of galvanized steel to other body parts.
There are 20 body parts on 1975-78 240 models coated with 65 pounds of zinc.
Also, the use of stainless steel for trim parts (first mentioned in the P120, Workbook No. 1) was continued.
|
|
A few of the major parts to remember are listed below:
- Front fenders -- called mudguards or wings in Great Britain, one set of
part numbers fit all 1975 through 1985 240 models.
- Hood -- called a bonnet in Great Britain, a hood covers the engine
compartment. Available in two versions -- without a raised front edge
(Alternate 1) or with a raised front edge (Alternate 2).
- Front grille -- covers the radiator and is made of a strong plastic.
Different models had different grilles (for example, a 242GT differs from a
242DL).
- Headlight frame -- also called a door or bezel, one frame surrounds each headlight.
- Rocker panel -- also called bottom rail. A formed sheet metal panel below
the side doors running between the front and rear wheel openings.
- Quarter panel -- the rear fender on a car.
Your Volvo retailer should have the ability to provide detailed descriptions of all sheet
metal body parts as well as part number listings for
dashboard, upholstery, window glass, air conditioning, bumpers and emblems.
NOTE: Air conditioning parts appear in a different parts manual
for the 240/260. They are not listed with
engine, heating/ventilation or dashboard parts.

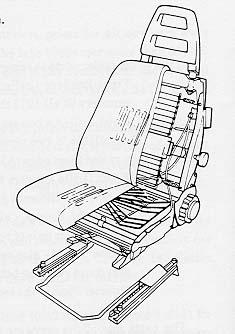

A variety of interior upholstery colors and materials were fitted as standard
equipment. Cloth, vinyl and leather seating was available for different 1975
through 1978 240 models. As a general rule, the following chart applies:
|
Model | Upholstery |
245 Station Wagons | Vinyl (cloth in Canada) |
242/244 Sedans, 242 DL/244DL, 242GT | Cloth or vinyl |
242GL/244GL Sedans | Leather |
|
|
Replacement upholstery and seat parts may still be available.
A four-digit upholstery code number (2203, 4224,etc.) is needed when ordering (if quantities are still available).
For 1975-78 240/260 cars, this is stamped:
- Onto a metal plate attached to the right side wheel housing.
- Directly into the wheel housing.
- Onto the vehicle identification code plate.
|
|
Later cars all have the code stamped on a metal plate on top of the right side wheel housing.
The special bumper design required by law and used on the 140 are also on all 240/260 Volvos.
Replacement parts include:
|
- Energy absorbers (bumper shocks)
- Bumper facebar
- Cover moldings
- Support brackets
|
|
A front or rear accident occurring at more than 5 mph can damage these parts
and require their replacement.
A manually operated sunroof was available on a variety of 240 sedan models.
The 245 has never been offered with a factory sliding sunroof. Replacement
parts for the 240 sedans include:
- Sunroof crank handle
- Piping (a type of felt-like gasket)
- Left and right cables
- Gear housing for the crank
A sunroof that is not operating property (jams open or closed) can sometimes be
repaired without the need for replacement parts. Adjustment might be all
that's needed.
Body - 260 Models
The introduction of the 260 in 1976 completed Volvo's new generation of
automobiles. These top-of-the-line models were an advancement over the
single model line of the 160. A complete model range was introduced
that included:
- 262 two-door sedan
- 264 four-door sedan
- 265 five-door station wagon
As mentioned earlier, the 260 models were fitted with the 2.7 liter (163 cubic
inch) aluminum V-6 engine.
NOTE: Another 260 car was introduced for 1978 -- the 262C. This was a special two-door coupe with
the body made by Bertone in Italy. The 262 listed above is a two-door version of the four-door 264 seden body
made in Sweden and made in limited numbers. Be aware that the 262 and the 262C are two different cars
(although they share many mechanical parts, the bodies are very different).
The 262/264/265 were also available as GL models. These 260s included extra
luxury features like heated seats, power windows, a special steering wheel,
sunroof (sedans only), metallic paint and special exterior trim parts.
Replacement body part numbers for the 240 usually apply to the 260. For instance, a front fender and rocker panel for a 1977 244 and
1977 264 are the same. The only major exceptions to this general rule are
the 1978 through 1981 262C models.
At first glance, there is little doubt that 1976-78 240 and 260 models look
very much alike. Differences "under the skin" give the 260 its own
special character.
All 260 models are clearly identified by external name badges (265GL, 262C,
264) either on the rear trunk lid or on the front fender. Of course, the VIN
and Version Identification Code (VIC) plates on a 260 contain the most accurate information.
The 1975-78 240/260 were continually improved through these years. The
large number of Volvos on the road and an increased range of genuine Volvo
replacement parts made the future for parts look pretty good.
But a cloud appeared on the horizon ...
New Volvo car sales in the United States dipped to 43,700 in 1976 (down 28% from
the previous high of 61,042 in 1973). Manufacturing costs had soared to high
levels largely because of the increased cost of oil.
Higher Volvo new car prices were the result. In addition, many car buyers
(fearing another oil shortage) focused their attention upon small sub-compact
economy cars. There was a drop in Volvo new car sales.
Early "teething problems" with the 240/260 were overcome by the end of
1978. In North America, these Volvo cars would outlast tough economic
conditions, re-emphasize the traditional Volvo quality/value image and
successfully move the Volvo name up market.
The 240 also carried on another Volvo tradition...performance! |
|
