PARTS FAMILIARIZATION WORKBOOK NO. 2 240/260
Section 2: 1979 Through 1984 Models |
INTRODUCTION - Part 2
Engine - Gas Six-Cylinder
The B-27 engine introduced with the 260 models in 1976 was replaced by the B-28F
engine in the 1980 260 models.
The B28-F is similar to the B-27F and contains many of the same features such as:
- Compact V-6 cylinder arrangements
- Aluminum block, heads, intake manifold and water pump
- "Wet" cylinder liners, overhead camshafts
The B-28F displaces 2.849 liters (2,849 cc) or 173.85 cubic inches. The
increased displacement from 2,660 cc of the B-27 is the major difference.
The different parts include pistons and liners, liner shims, piston rings,
camshafts, valve springs and keepers, and head gaskets. Most routine
maintenance parts like the air filter, oil filter and valve cover gaskets are
the same for both engines.
Because this is a wet liner engine and not a bored block,
a machine shop is not needed to rebore the block when a rebuild is needed.
However, as with all Volvo engines, the rebuilding process must only be
attempted by qualified Volvo-trained technicians.
|
|
A single kit that contains everything needed for rebuilding a Volvo engine is
not available. Instead, the parts needed must be ordered individually. Because
rebuilding an engine requires precise measurements, never assume what you may
needs. Let the customer tell you. Remember that key engine parts like
pistons/liners, main bearings, etc. are available in a variety of sizes for each
engine.
|
Replacing a 1976-79 B-27F with a B-28F is not as easy as it may seem.
Switching parts from the old engine to the new engine and various adjustments
have to be made.
For instance, the B-28F may not have the exact pre-drilled holes or mounting
brackets that the replaced B-27F has. Because there are several versions of
each engine (emissions equiprment and fuel systems parts vary), it may take
additional time to get the newly installed engine running.
|
|
As indicated in Section 1, other car manufacturers were involved in the design
and update of the V-6 engine. Certain models of Peugeot (the 604), Renault (the
R-30) and the Delorean were fitted with a version of the 2.7 or 2.8 liter V-6.
Fuel and emissions system parts vary by manufacturer, but the engine internals
are usually identical.
|
The last B-28F installed was in the Canadian and U.S. 1982 264GLE model.
Starting in 1983, the new Volvo 760 came equipped with the B-28F.
|
|
One last comment on the B-27 and B-28: the all-aluminum design make for a
very lightweight engine. A genuine Volvo Exchange Program B-28F engine (if still
available 10/98), tips the
Parts Distribution Center scales at 290 lb. (132 kg). That's light when
compared to some others:
- The B-20 at 372 lb. (168 kg)
- The B-21F - Turbo at 410 lb. (186 kg)
- An average domestic 5-liter V-8 at a heavy 450 to 550 lb. (250 kg)
- The D24 at a hefty 550+ lb. (250+ kg).
The point is that this compact, aluminum V-6 makes more power for its weight and
size than many other engines. Volvo engineers felt that this kind of balance
was too good to pass up -- and Workbook No. 3 includes details about an even
more improved generation of Volvo V-6 engines, the B-280F.
Electrical
By 1979 the 240/260 was on its way toward carrying on the Volvo tradition of a
dependable electrical system. Ongoing improvements to alternators, batteries,
wiring harnesses and ignition system parts kept pace with the demands of the
market and made up for earlier "teething" troubles. Other parts were also
improved.

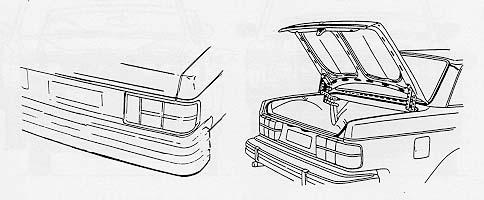

New taillight assemblies for the sedans first appeared in 1979. The 260s
received six-section assemblies and the 240s were fitted with five-section rear
assemblies.
These assemblies contain the parking brake, reverse directional
reflector and side marker lights. A printed circuit and twist/turn bulb sockets
eliminated loose wires and made replacing a bulb much easier. Lenses and
circuits were permamently attached to the housing, unlike the separately
attached pieces of most 1978 and earlier Volvos.
This one-piece design is still in use today. Accident research previously done by
Swedish engineers on the older multi-piece rear taillight indicated that damage
destroyed the entire multi-piece unit in more than 80% of the accidents studied.
The cost for producing and replacing separate taillight pieces is greater than
a one-piece design. Also, the one-piece assembly is better sealed and is less
likely to develop an electrical problem due to exposure to the elements caused
by slight accident damage.
A complete left or right rear taillight assembly is a precision-made part
designed to last for years. Each assembly contains a combination of lenses,
reflectors, bulb sockets, gaskets, sealing compounds, circuits and a moulded
housing. It meets all federal safety requirements including state motor vehicle
inspection laws. The safety benefits and overall quality of a genuine Volvo
taillight assembly make it worth it to use a genuine replacement from Volvo.

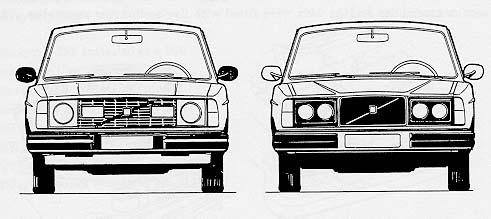

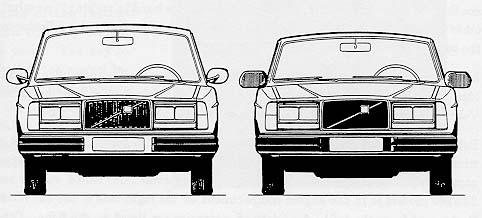

The headlight arrangement for U.S./Canadian 240/260 Volvos have
gone through a few changes.
The headlamps were single round, dual round and dual rectangular headlight bulbs
(the bulbs were called "inserts").
Although headlight inserts are listed by VIN on your Volvo Parts Manager's list,
we have simplified things with the list
below:
HEADLIGHT INSERTS
1975 | Single round | No models available |
1976 | Single round | Dual round |
1977 | Single round | Dual round |
1978 | Dual round (except single round on 242 models) | Dual rectangular |
1979 | Same as 1978 | Dual rectangular |
1980 | Same as 1978 | Dual rectangular |
1981 | Dual rectangular, halogen high beam | Dual rectangular, halogen high beam |
1982 | Same as 1981 | Same as 1981 |
1983 | Dual rectangular, halogen high and low beam | No models available |
1984 | Same as 1983 | No models available |
For Canadian Volvos, European square and round halogen lights were available as
an accessory. These single inserts are large, square lenses with replaceable
bulb inserts. They are not legal for U.S. Volvos.
|
|
Windshield wipers from time to time require the replacement of the rubber insert
or entire insert/blade holder. All 240/260 models have two front wipers. Older
Volvos may require a new wiper motor, wiper arm bearings and new cables. Wiper
motors can be rebuilt.
However, usually the cost of repairing the motor (labor + parts) is more than
the price of a new one.
The rear window is kept clean on all 245/265 station wagon models with its own
single wiper. This was a very unique feature when these cars were introduced in
1975. Volvos were not the first to have this feature -- but they did have a
hand in making it popular! Most other imported and domestic station wagons had
a rear-mounted wind deflector to clean the window instead of using a wiper.
In time, more wagons (even hatchback sedans and sports cars) would pick up on
this good idea of using a rear wiper.
Both the front and rear wipers have washer systems to spray washer fluid on the
window. A washer motor located on or right near the plastic washer fluid
reservoir is a popular replacement part. The location of the reservoir (also
called washer tank) on 240/260 models is in the engine compartment on the right
side of the car (diesel and Turbo models on the left). Other key replacement parts
include the washer lines and jets that spray the fluid on the glass.
|
|
Never use engine coolant as a washer fluid substitute. Serious damage to the body
paint can occur.
|

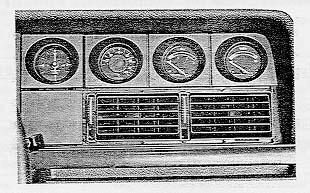

The dashboard instruments on the 240/260 models include a variety of
speedometers, tachometers, clocks, temperature gauges, boost gauges, fuel gauges
and optional accessory gauges. The sizes and shapes of the instruments changed
through the years.
|
|
|

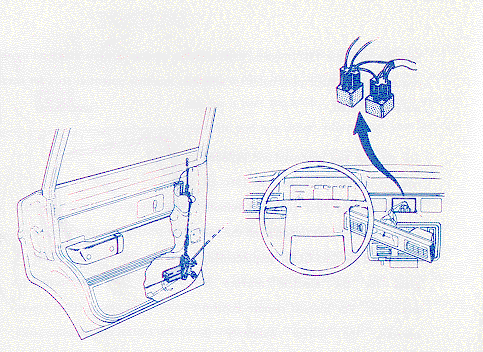

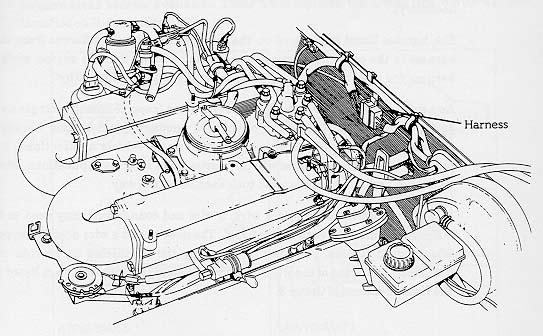

Speaking of variations -- now we come to wiring harnesses! These are also called cable
harnesseses.
If a harness is needed, usually it's f or a fire or accident-damaged car.
There are many
variations listed and diagrammed by the general areas of the car. For
instance, all headlight harnesses and engine harnesses (the front of the car)
are listed, dashboard and interior harnesses for the middle of the car, tne rear
harnesses (taillights, rear wiper/washer), etc.
Some things should be remembered:
As new part numbers replace older part numbers (supersessions), a single new
part number can replace many older part numbers for the same harness. Because a
single new harness may now fit many vehicle applications, it's possible that
this new harness will have extra wires for some applications. Most technicians
will tape them up and tuck them out of the way.
If the new harness is missing a wire, a wire and connector(s) may need to be
added to the harness by the technician. The need to add a wire doesn't happen
often; but if it does, you may need to provide the
connectors at the end of the wire.
|
|
For harnesses with many missing wires or incorrect wire lengths, BEWARE!
Recheck the part number and vehicle info, then visually compare the new to old
harness if possible. Obtain all the facts and advise your parts manager of the
situation -- Do not order another harness just to compare.
|
Wiring harnesses are usually expensive. Most are handmade and involve
considerable time to produce. Many knowledgeable long-time parts professionals
would agree that they have had more than one wild and crazy experience dealing
with wiring harnesses.
Drive Train
The M45, M46 manual four-speed transmissions and the BW55 automatic threespeed
transmissions were installed in different models from 1979 to 1984. Internal
parts to these transmissions were updated through the years.
With the 1982 240 models, the AW70 and AW71 three-speed-plus-overdrive automatic
transmissions became available. These units replaced the AW55 (the BW55 was
still installed on V-6 and diesel cars).
The AW70/71 transmissions are improved versions of the earlier automatics. The
AW70 was fitted to normally aspirated (non-Turbo) four-cylinder sedans and
wagons. The AW71 was fitted to all Turbo models equipped with automatic
transmissions. The information plate on the side of the transmission and the
VIC plate will positively identify the transmission.

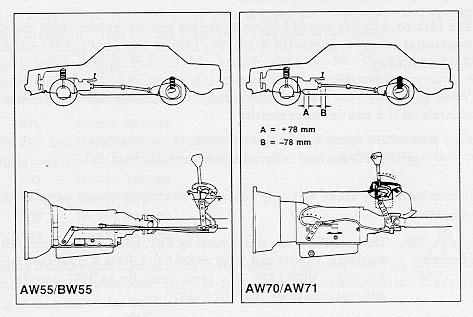

These new transmissions were longer than the AW55/BW55. All cars equipped with
the AW70/71 have changes to certain driveline, suspension and exhaust parts. For instance:
- The front propeller (driveshaft) shaft is shorter and has a different part number.
- The front coil springs are heavier.
- The engine exhaust front downpipe and catalytic converter were modif ied.
- Longer control cables and a push-button switch to engage the overdrive feature were
added to the gear selector assembly.
The dependable AW70 and AW71 automatic transmissions are sometimes referred to
as a four-speed transmission, although it probably is more technically correct
to call them a three-speed-with-overdrive transmission. Replacement parts may still be
available as well as complete genuine Volvo exchange units.
The 1979-84 242, 244 and 245 four-cylinder gas and six-cylinder diesel models
use a mechanical linkage to operate the clutch. The 1979-82 262C, 264 and 265
models have a hydraulic linkage.
When we include what was mentioned about clutch systems in Section 1, we can
make this rule for U.S. and Canadian models:
- All 1975 through 1984 240 models have a mechanical (using a clutch cable) system.
All 260 models have a hydraulic (using fluid under pressure) system.
|
|
The rest of the drive train is unchanged from the 1975-78 240/260 models. Key
replacements parts previously mentioned include the propeller shaft center
bearing, universal joints, a variety of rubber bushings, and a regular or
limited slip (also called anti-spin) differential.
|
|
Complete new rear end assemblies (rear axle tubes, center housing and
preassembled differential) may still be available.
Brakes
By now you probably would agree that Volvos have their own kind of evolution.
It's not very visible on the outside, but serious changes do occur underneath
the surface.
The parts department feels each one of these changes more than any other
Department in a dealership. "How so?" you might ask. Well, look at this
example.
Listed below are excerpts from the 1979 through 1984 Volvo New Car Features
booklets provided to the dealerships. Read and take notice of the new features
that occurred with the brakes on the 240/260:
1979 - No new featutres
1980 - Ventilated front brake discs for all models except DL 2/4 door.
Parking brake color matched to interior and brake pad (teeth) is redesigned.
1981 - No new features
1982 - No new features
1983 - No new features
1984 - No new features
Judging from the above, you may think that quality improvements were not needed
(or not made). Just the opposite. Many parts were improved.
The system used on the 240/260 is a version of the four-wheel, power-assisted
disc brake system that was pioneered an the L40 in 1967. From 1979 to
1984 continuous research occurred to improve the system.
For instance, brake pads were tested and improved to reduce noise, fade
resistance and increase longevity. Brake pad material was constantly
re-evaluated to suit particular models. Usually both regular and special
long-life pads (called taxi pads) were available. As new materials became
available, groups of brake pad part numbers were usually replaced by a single
part number.
|
|
Genuine Volvo brake pads have identification markings on the backing plate. The
markings appear as follows:
|
Marking | Meaning |
TX | Manufacturing description |
465 | Charge number or composition number |
FF | A safety classification. The first letter indicates the cold
friction value and the second the operating friction value. |
20088 | Backing plate number |
135 91 94 | Volvo tech number |
448BE | Batch number |
|
|
None of these letters/numbers is a part number! These technical numbers are
assigned by Volvo engineers and relate to specific car models.
Brake pads are sold in kits of four pads -- two for each caliper. The same
batch number on each pad proves that all the pads in the kit were manufactured
at the same time and, therefore, have the same properties.
The best types of materials for brake discs and pads were continually
investigated. Some material combinations cause electric currents -- called the
galvanic effect. Unsuitable material combinations can produce such a high
galvanic effect that the brake pads can actually rust onto the brake disc!
A final word on brakes -- Genuine Volvo brake pad kits contain just the brake
pads. Do-it-yourselfers and shop technicians will need to replace some of the
mounting hardware to do the job by the book. The mounting kits should be
available at your dealership. Remember, it's pads and mounting
hardware!
Suspension/Steering
The 1979 to 1984 240 /260 models have the same suspension system described
previously with the 1975-78 models. This includes the strut-type front end and
coil spring rear suspension with 14-inch stamped steel road wheels.
|
In 1980 a 15-inch alloy wheel rim became available for certain 240/260 Volvo
models for the first time.
Unlike the 15-inch wheel used on the 140 and 160, this five-spoke
aluminum alloy wheel was designed to fit the first of a new generation of
low profile tires. This 15-inch rim became standard equipment on the Turbo.
|
|
All 240/260 models have power steering as standard equipment from 1982 to the
present. Most 1978 through 1981 models have also come with power steering. The
only exceptions are the 242DL, 244DL manual-transmission cars that have manual
steering.
Body
The basic shape of the 240/260 did not change during the 1978 through
1984 period. Small, almost unnoticeable changes to the sheet metal did occur
mainly to improve fit or function.
An example of a small but important functional improvement is the redesigned
trunk lid first fitted on all 1979 240/260s. The bottom edge of the new lid was
made to be closer to the ground -- the trunk on all 1979 and later cars is
easier to load than the 1975-78 models. Several new part numbers were
introduced including the new taillight assemblies previously mentioned in the
"Electrical" section.
A change to the way 240/260 models are referred to occurred in 1980. The
various models were referred to by letters -- the numbers (244, 265, etc.) did
not appear. DL, GL GT, GLE, GLT and Coupe were used to identify the model both
on the car and in Volvo consumer publications.
|
Now instead of a customer saying that he or she needed a part for a 244GL, the
customer might ask for a part for a GL. Always politely ask for the VIN and any
other information you feel you will need to identify the Volvo model.
|
|
|
The letter designations provide only part of the info you need. Make your job
easier by always getting at least the VIN. Letters can be tricky. For
instances a 1980-81 GL is a 260 model -- a 1983-84 GL is a 240 model. Also, a
few 1982 GLT models are NOT equipped with a Turbo engine -- some in the United
States have a B-21F, some in Canada have the B-23E!
|
|
When identifying exterior trim moulding, it helps to know the year and model
designation (GL, GLE, DL, etc.) in addition to the VIN. Here's where the
letters help to identify the parts needed.
|
Starting with the 1980 models, most exterior emblems were attached by
double-coated tape. Attachment holes for emblems (another potential area for
corrosion) were eliminated.
|
The interior was improved and included new up market features. In 1980 all
models for the first time had remote control side mirrors (electric on the 262
Coupe and 264/265 GLE). Replacement glass for the electric mirrors may still be available.
For manual remote control mirrors, the mirror assembly is replaced as a unit.
|
|
The top-of-the-line models in 1980 (GLE and 262 Coupe) also introduced other new
or improved luxury features to Volvos. These included electrically operated
door locks and an electronic cruise control instead of the mechanical system
previously used. Typical replacement parts for the door locks system include
the electric motor (usually one per door) and relays in the dashboard.
Beginning in 1981, all station wagon models were fitted with a locking
mechanism for the rear cargo compartment floor storage area.
|
|
